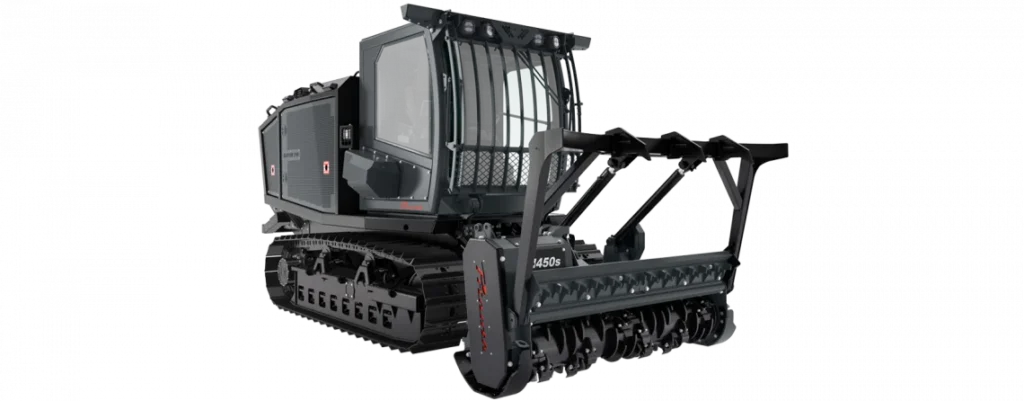

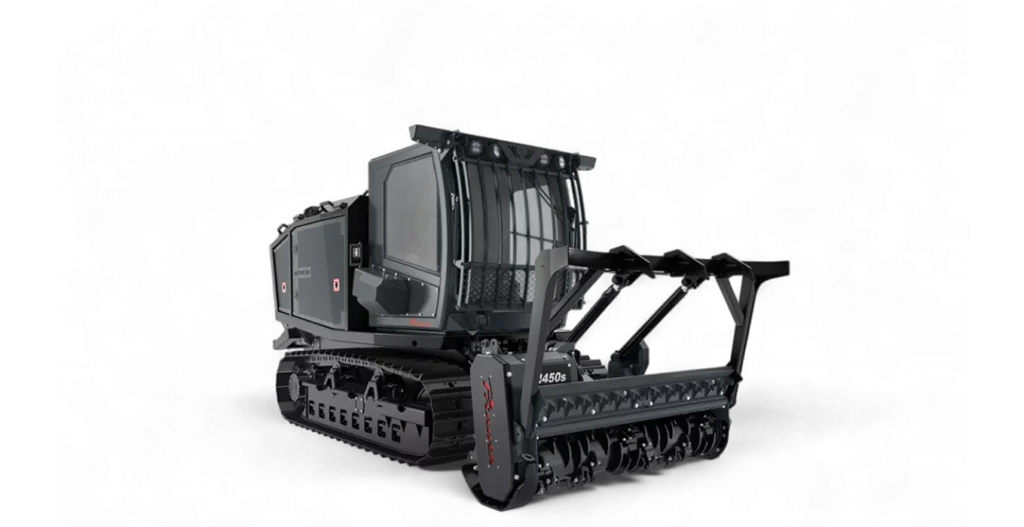

RAPTOR 200

Strong yet lightweight mulching solution

CAT C 4.4 /Stage V / T4f

Engine

> 30 cm

Diameter mulching material

140 kW

Power

Powerful

The CAT C4.4 engine combines high power and fuel efficiency to help the Raptor 200 keep costs down and provide stable yields in daily operations.

Low Weight

The low weight and its dimensions makes it easy to transport to its place of use. Low ground pressure useful for critical applications.

Most Comfortable and Safe Cab

The comfortable, air-conditioned, ergonomic cab meets the highest safety standards (ROPS/FOPS certified). To work for long time under toughest conditions.

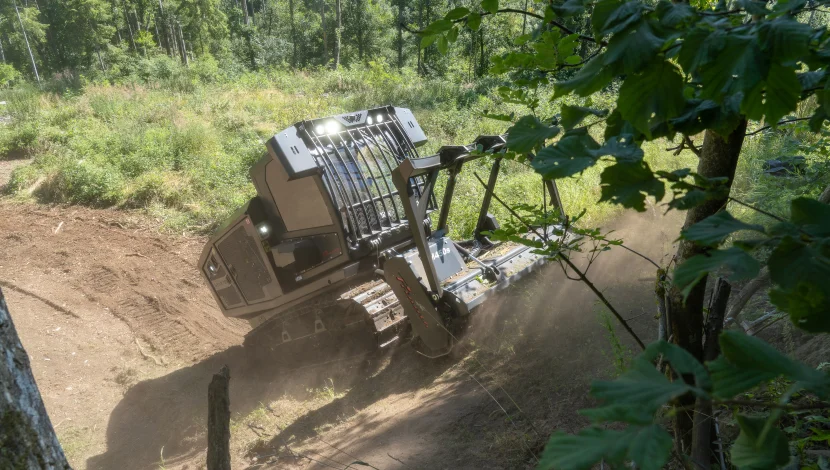

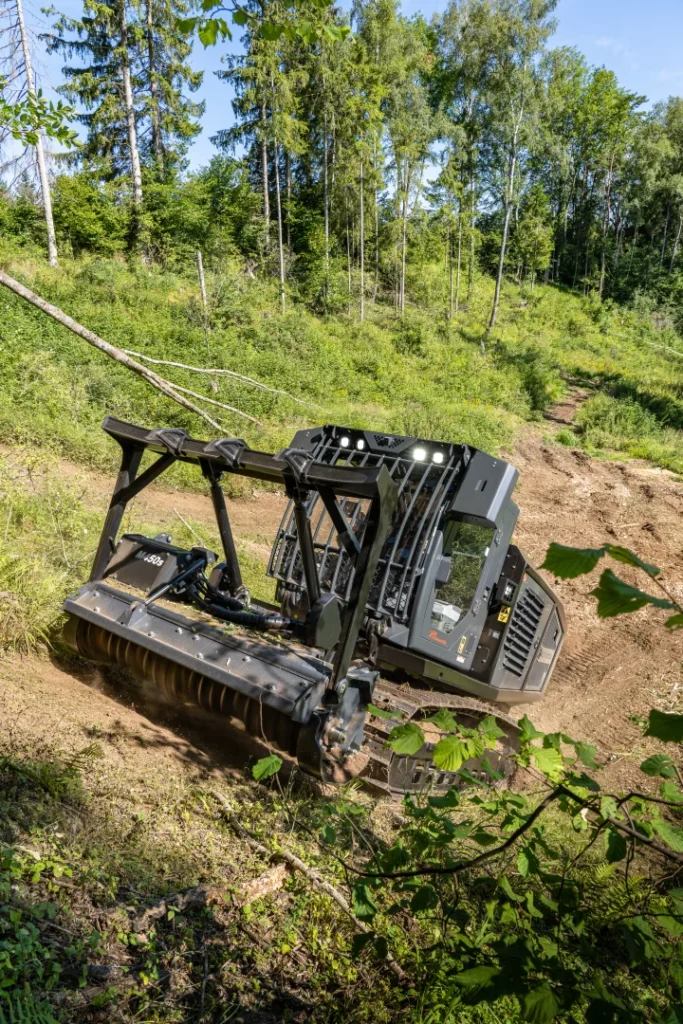

Strong on the slope and also on the plain

With its powerful Cat C4.4 engine, the Raptor 200 is equally at home on steep slopes and on soft ground. With 190 hp and an extremely low tare weight of 9.2 t / 20,280 lbs, the Raptor 200 has the optimum power-to-weight ratio. The Raptor 200 is equipped with the Grizzly M450s mulching attachment. It comes with a hydraulic push bar and flap, counter blades and the patented BCS/UPTs rotor system for optimal results.

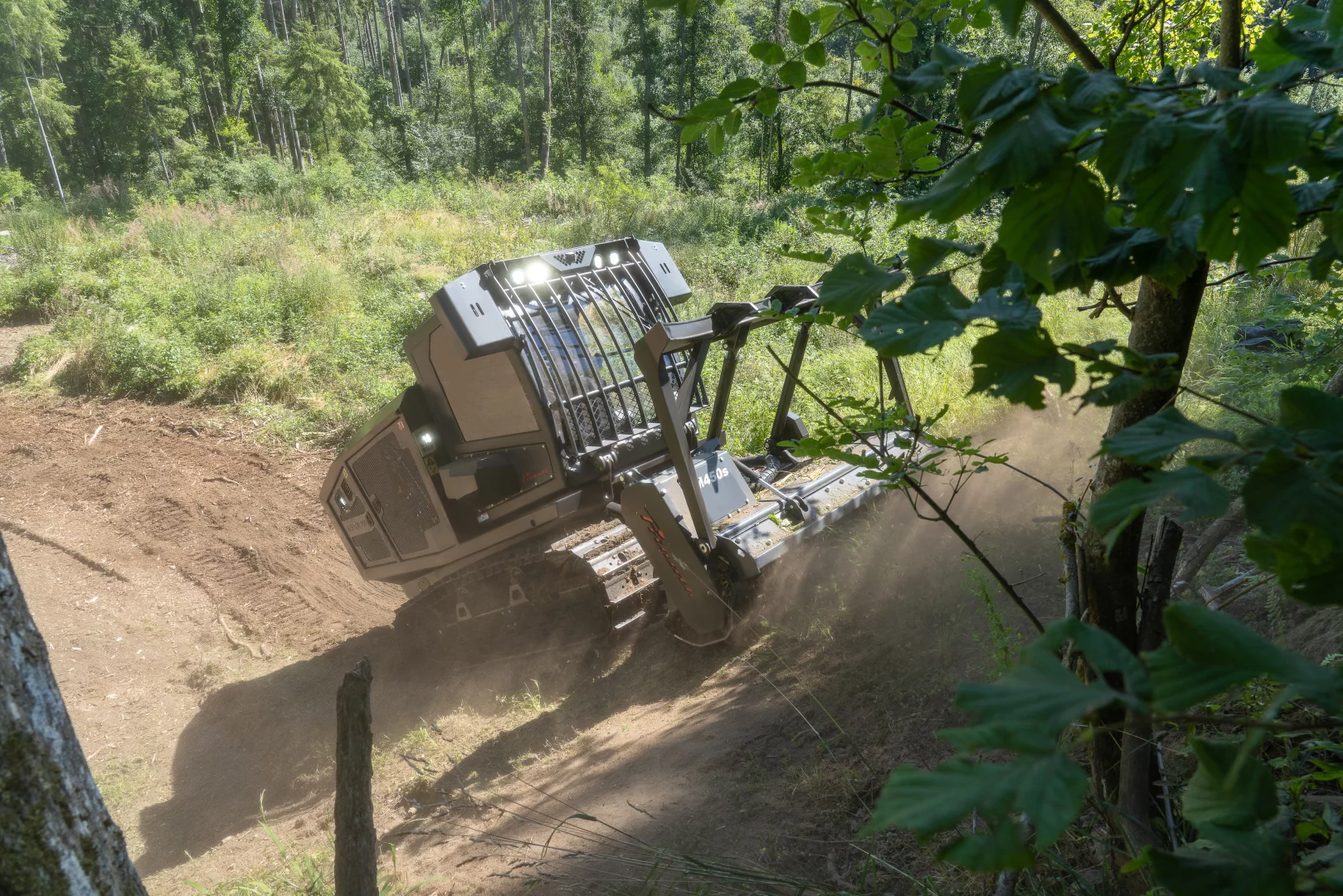

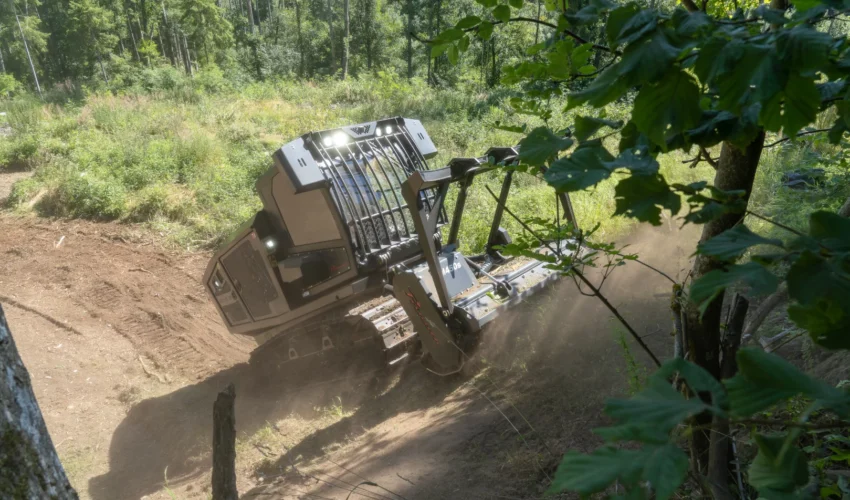

Perfect For The Steepest Slopes

Features

1

Powerful Engine with 190 HP

The 140 kW / 190 hp 4-cylinder Cat C4.4 diesel engine with a maximum torque of 815 Nm provides the user with sufficient power reserves in all application areas. The twin turbochargers ensure high drive efficiency.

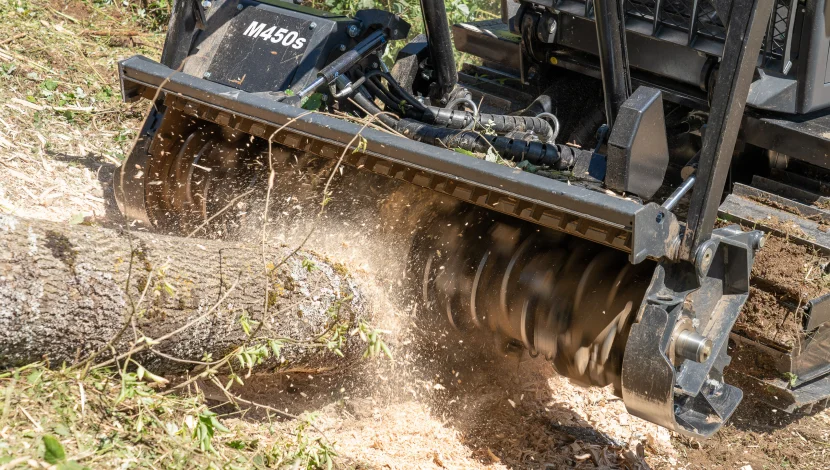

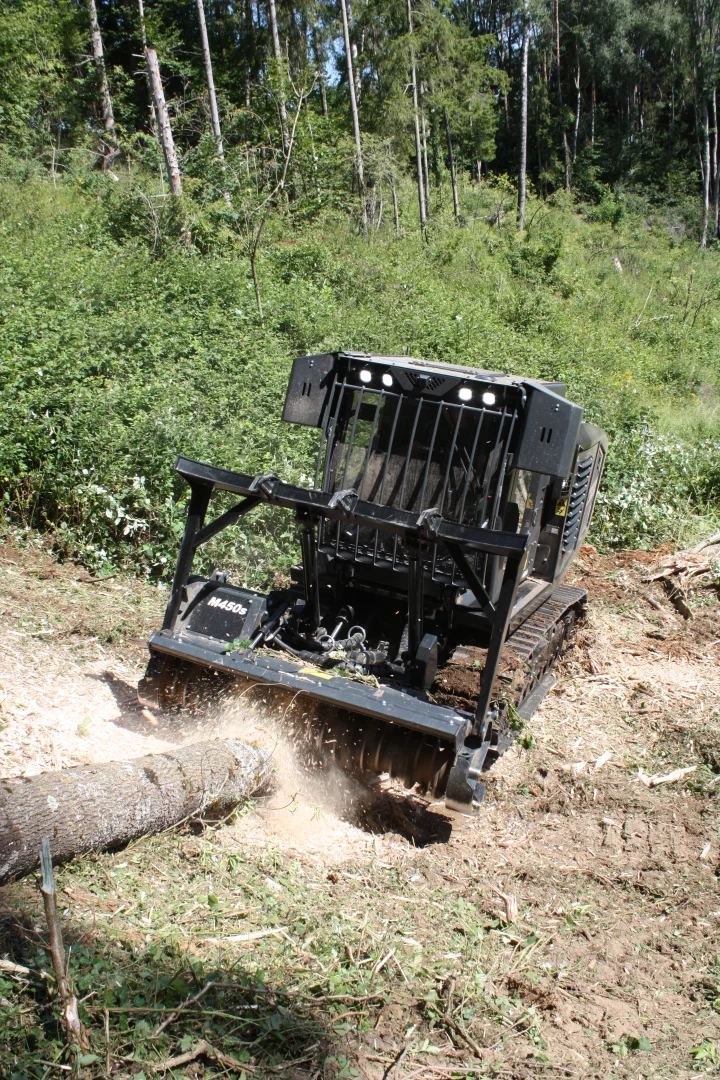

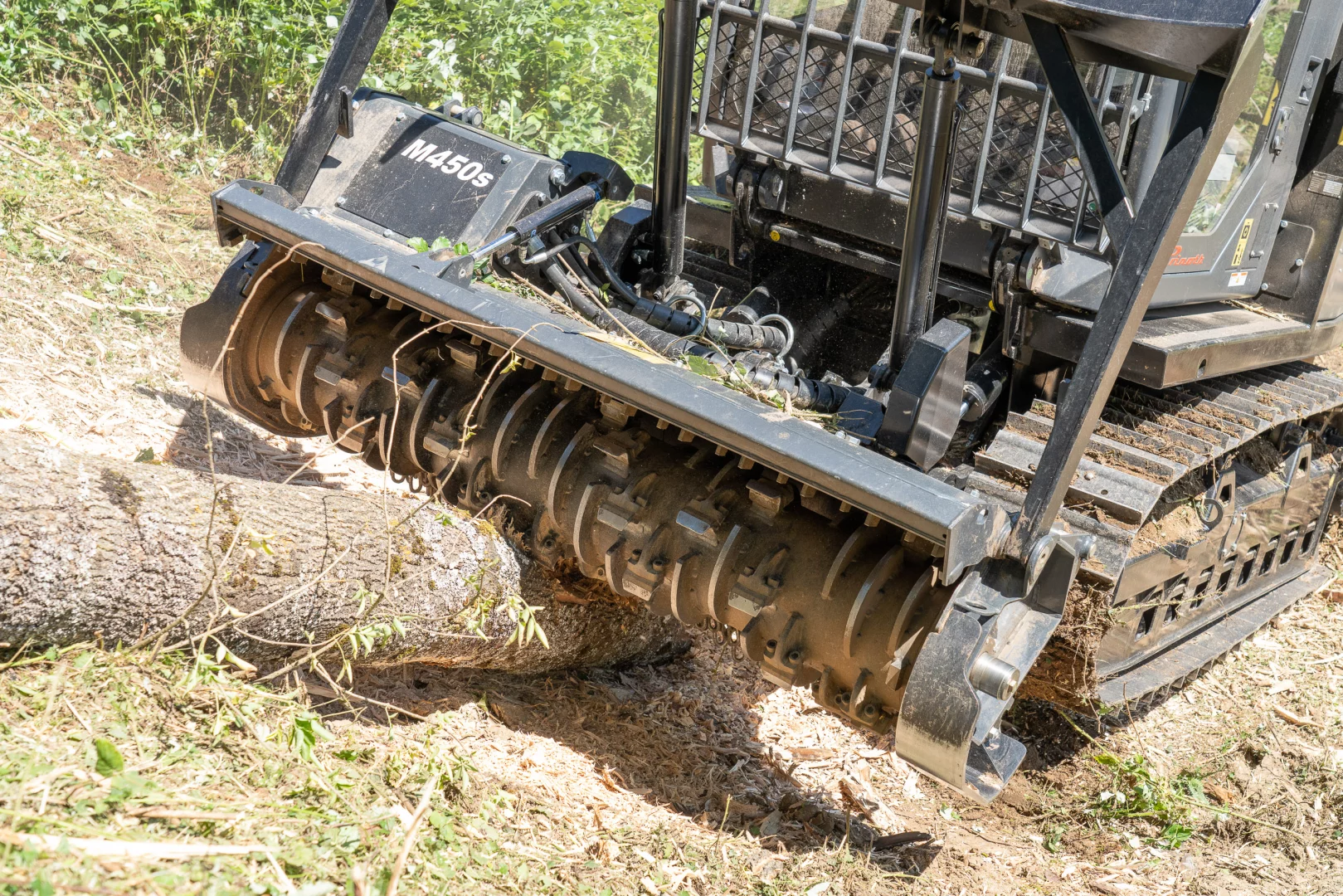

2 Grizzly M450s Mulcher

The Grizzly M450s mulching attachment with hydraulic push bar and flap, efficient counter blades and the patented BCS or UPTs rotor system ensure perfect mulching results.

3 Cabin

Cabin with rollover protection and protection against falling objects. Cab fulfills following standards: ROPS / FOPS / OPS

4 Rear Mirror Camera System

A rear mirror camera system increases the driver’s view.

5 LED Work Spotlights

Powerful LED work lights and additional service lighting for round-the-clock operation.

6 Control and Monitoring Elements

Clearly arranged, the operator has all functions and parameters at a glance. In addition to comprehensive information, the intuitive display (color 7” display) also sup¬ports fault diagnosis of the machine and engine.

7 Driver’s Seat

Highest standard in seating quality, comfortable, ergonomic and heated.

8 Cab with Tilt Function

To get access to the components under the cabin, it can be tilted with a hydraulic cylinder to grant optimal accessibility.

9 Overpressure System

Only filtered air is passed into the cabin. The inside of the cab is pressurized. This helps prevent dust and dirt from entering the cabin from outside.

Engine

CAT C 4.4 /Stage V / T4f

Power

140 kW

Travel Speed

8 km/h

Total working width with mulcher

2,200 mm

Length – 5,594 mm

Height – 2,574 mm

Weight with mulcher – 9,150 kg

Rotor diameter – 450 mm

Diameter mulching material

> 30 cm

Tank capacity

250 l

Working width

1,900 mm

Tools – 40x BCS / 48x UPTs

Ground pressure with mulcher – 0.330 kg/cm²

Ground pressure without mulcher – 0.280 kg/cm²
