OX R1000m

The strip tiller Ox R1000m is ideal for tractors with an output of 185 to 360 hp

Contact US

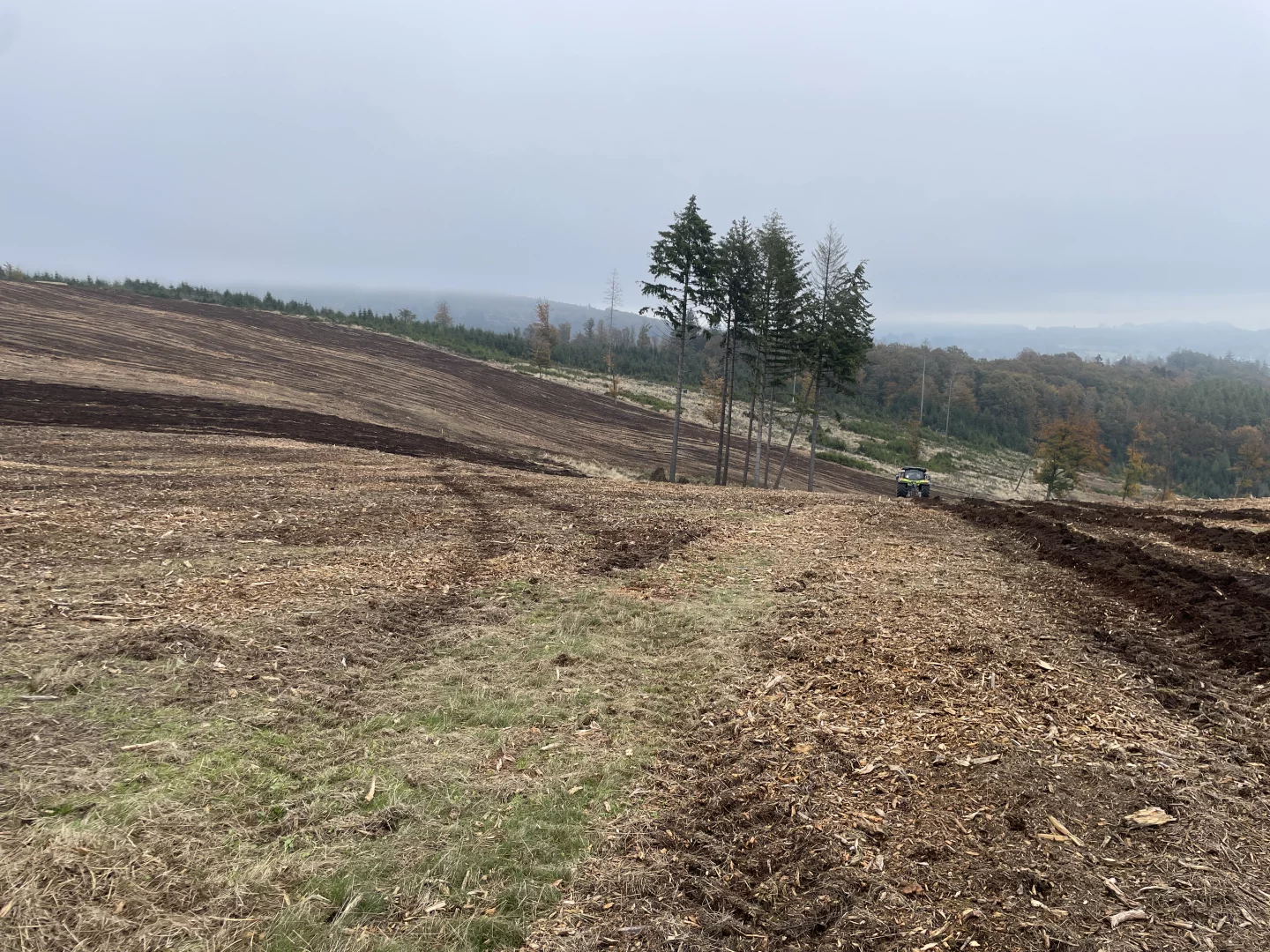

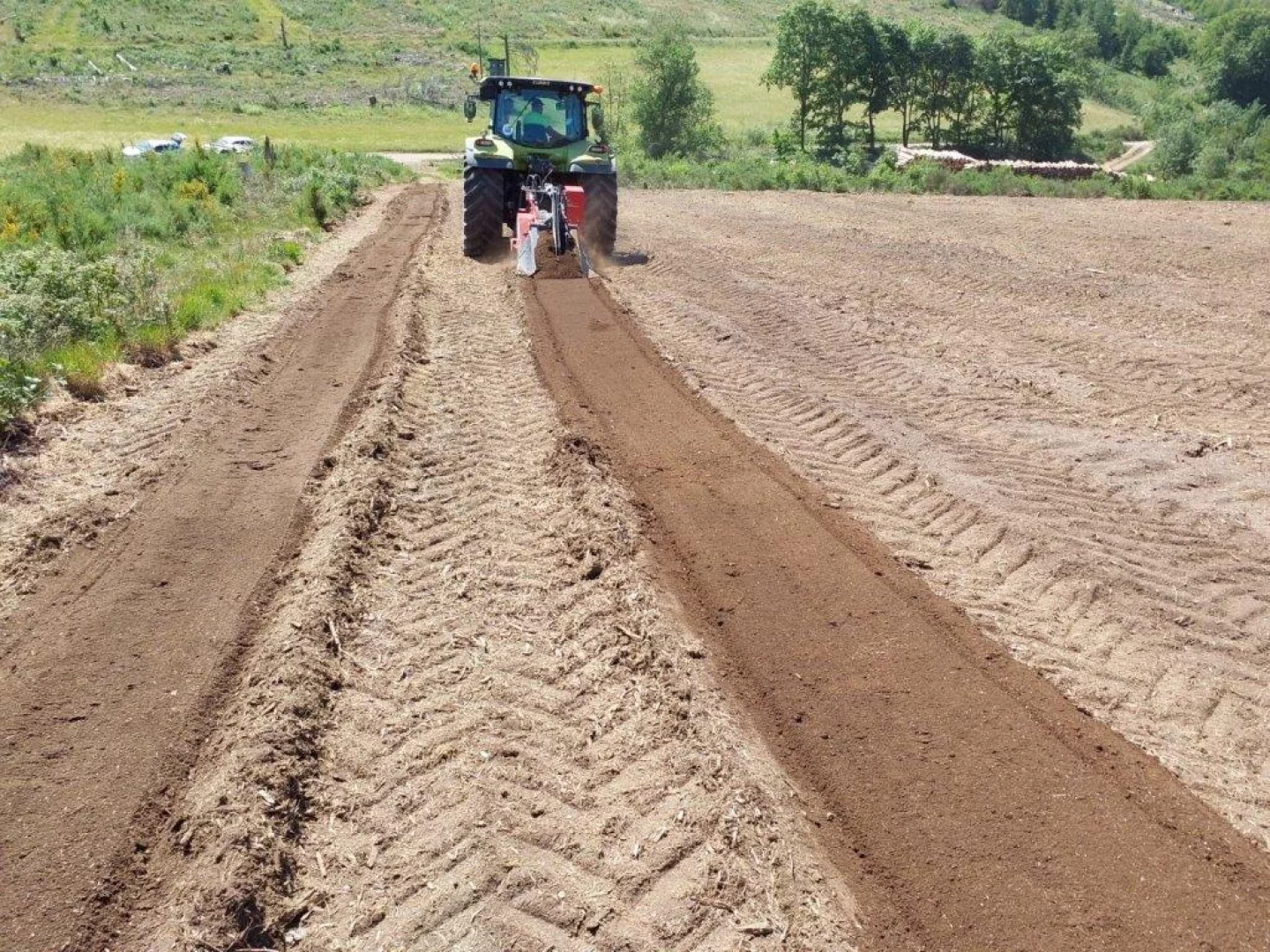

The strip tiller Ox R1000m (for tractors with 185 to 360 HP) was specifically designed for the preparation of planting strips. It enables targeted soil cultivation for efficient and sustainable planting. It is ideally suited for the reforestation of natural disaster areas or the cultivation of plantations, as well as use in erosion-prone regions.

Power
185-360 HP
Working depth
up to 450 mm (dependent on ground conditions)
Working width
450 mm
Power
185-360 HP
Working depth
up to 17.7 in (dependent on ground conditions)
Working width
17.7 in

Strong & Robust Housing

Optimized housing is covered with bolted liners out of Hardox, with counter blades which protect the housing and ensure additional shredding of the material.

Reduced Maintenance

Power transfer with poly chain – the poly chain system prevents slippage and is low-maintenance.

Clever & Safe

The optional flap (hydraulically or electronically controlled) is equipped with exchangeable counter blades for perfect mulching results and extra protection.

Features

  • Housing

Reduce maintenance times with the easily replaceable, bolt on wear plate in the Hardox housing.

  • Chain guard curtain

Offers additional protection from flying debris when milling.

  • Rotor with UPT-tools

The UPT tool system, arranged in a weight optimized manner on the rotor, ensures perfect shredding with an optimal cutting pattern.

Find the best deal
  • Transmission cooler (optional)

Recommended from 290 hp, for additional cooling for the protection of the drive components.

  • Splash guard

Mulch material is optimally deposited in the planting strip.

  • Two-sided belt drive

For power transmission with belt tensioner: efficient power transmission to the rotor.

  • Deep loosener (optional)

The deep loosener can be adjusted to 5 positions, allowing for loosening below the milling soil, up to 8 in (200 mm) beneath the rotor, for optimal plant growth.

TECHNICAL DATA OX R1000m

Recommended power

185 – 360 hp

Working width

450 mm / 17.7 in

Rotor undercut

300 mm / 11.8 in

Total width

1,200 mm / 47.2 in

Rotor diameter

1,000 mm / 39.4 in

Working depth**

up to 450 mm / 17.7 in

Tools

18 UPT09

Weight*

2,590 kg / 5,710 lbs

PTO speed

1000

3-point connection

KAT 3 / KAT 4
