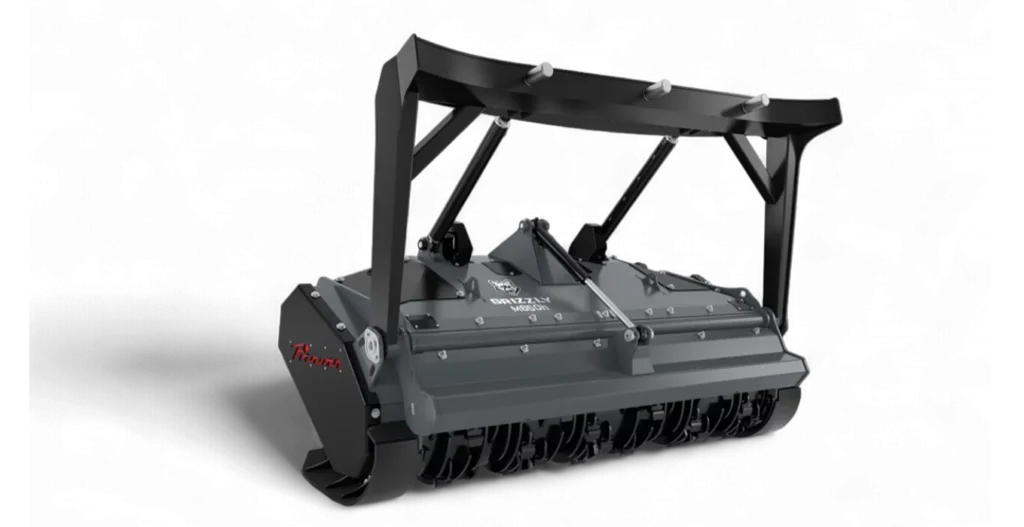

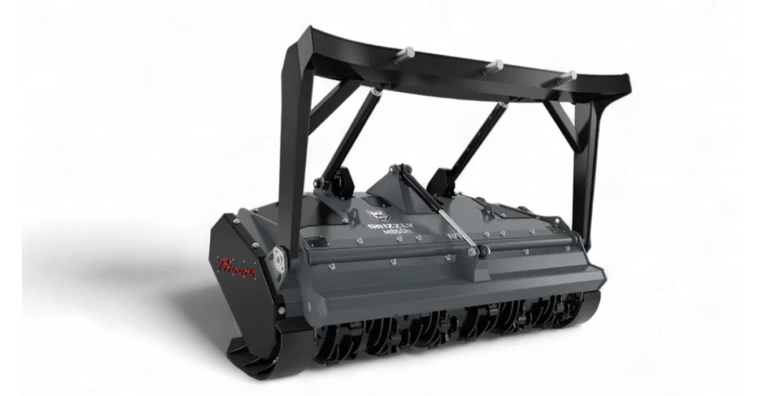

GRIZZLY M650h

Hydraulic driven mulcher for hydraulic carriers with a volume flow upto 570 l/min.

VM_Grizzly-M650h Contact US

The Grizzly M650h is a strong hydraulic driven mulcher and is excellent for carrier vehicles with a volume flow up to 570 l/min (150.6 gpm). It is ideal for shredding branches and trees with a maximum diameter up to 40 cm (16 in).

Working width
2,350 mm
Total width
2,800 mm
Weight
3.800 kg
Working width
92.5 in
Total width
110 in
Weight
8,377 lbs

Your Benefits

Versatile with a wide choice of interfaces

Powerful mulcher with a wide choice of interfaces for customized attachment options, reliable in a wide range of applications and areas.

Powerful drive

Powerful dual drive with poly belt and two variable HD-displacement motors for maximum performance available.

Best mulching results

The housing is equipped with wear-resistant bolted liners with exchangeable counter blades to provide additional shredding for best mulching results.

Features

  • Push bar

The push bar guides taller material into the rotor in a targeted and safe manner. It is available in a fixed or hydraulic version, with pins or teeth.

  • Protection flap

Hydraulic flap with counter blades ensure better shredding of material and provides extra protection while mulching.

  • Protective Chain Curtain

The chain curtain provides extra protection while mulching.

VM_Grizzly-M650h
Find the best deal
  • Poly chain power transfer

The low maintenance poly chain system effectively prevents slippage and saves valuable time.

  • Protected Hydraulic Hoses

Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.

  • Universal Adapter Plate (Universal Interface)

Customized interfaces for simple mounting / demounting on various carriers with different options available.

  • Hydraulic Motor

Powerful and high efficiency dual drive with 170 cc or 280 cc HD – variable displacement motors for maximum performance.

  • BCS Bite-Control-System

BCS-Rotor with various tool options. Best balanced rotor for less wear on bearings and high speed meaning high productivity and perfect finishing.

TECHNICAL DATA GRIZZLY M650h

Working width

92.5 in(2,350 mm)

Total width

110 in(2,800 mm)

Weight*

8,377 lbs(3.800 kg)

Rotor diameter

25.6 in(650 mm)

Volume flow

up to 116,2 – 150,6 gpm
(up to 440 – 570 l/min)

Tools

64 x BCS / 56 x or 72 x UPTs

Hydraulic motor

2 x 170 cc // 2x 280 cc
