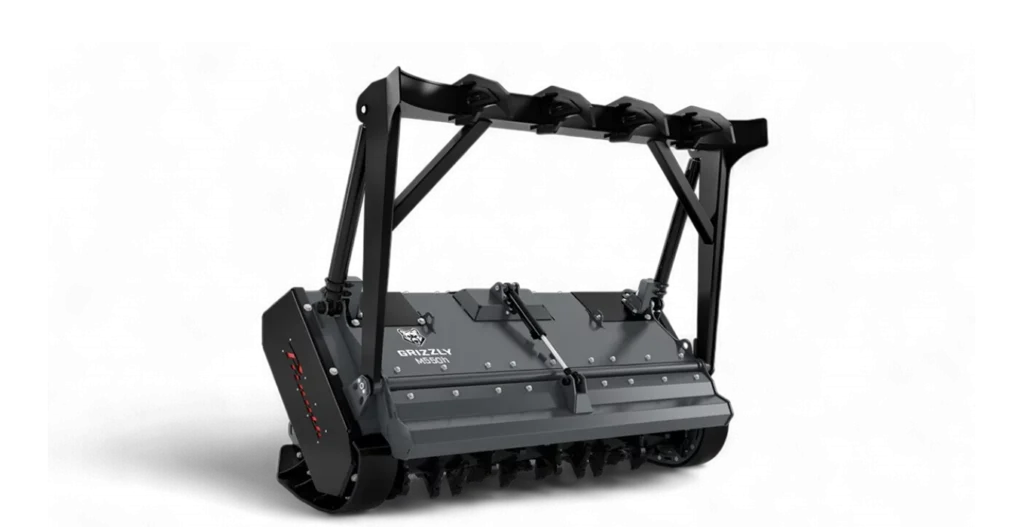

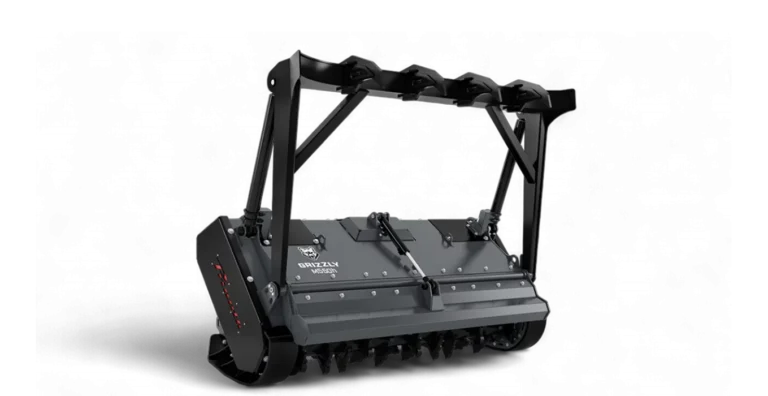

GRIZZLY M550h

Hydraulic driven mulcher for hydraulic carriers with a volume flow from 150-400 l/min.

VM_M550h Contact US

The Grizzly M550h is a hydraulic driven mulcher and is excellent for carrier vehicles with a volume flow of 150-400 l/min (40-106 gpm). It is ideal for shredding branches and trees. The mulcher can be used universally and is ideal for mulching branches and trees up to 35 cm. Often used in combination with the T-REX.

Working width
up to 2,410 mm
Total width
up to 2,800 mm
Weight
up to 2,200 kg
Working width
up to 95 in
Total width
up to 110 in
Weight
up to 5,511 lbs

Your Benefits

Universal & Reliable

Powerful mulcher with universal adapter plate (interface) for customized attachment options, reliable in a wide range of applications and areas.

Powerful drive

Powerful dual drive with poly belt and two variable HD-displacement motors for maximum performance available.

Best mulching results

The housing is equipped with wear-resistant bolted liners with exchangeable counter blades to provide additional shredding for best mulching results.

Features

  • Push bar

The push bar guides taller material into the rotor in a targeted and safe manner. It is available in a fixed or hydraulic version, with pins or teeth.

  • Protection flap

Hydraulic flap with counter blades ensure better shredding of material and provides extra protection while mulching.

  • Protective Chain Curtain

The chain curtain provides extra protection while mulching.

VM_M550h
Find the best deal
  • Poly chain power transfer

The low maintenance poly chain system effectively prevents slippage and saves valuable time.

  • Protected Hydraulic Hoses

Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.

  • Universal Adapter Plate (Universal Interface)

Customized interfaces for simple mounting / demounting on various carriers with different options available.

  • Hydraulic Motor

Powerful and high efficiency dual drive with 115 cc or 170 cc HD – variable displacement motors for maximum performance.

  • BCS Bite-Control-System

BCS-Rotor with various tool options. Best balanced rotor for less wear on bearings and high speed meaning high productivity and perfect finishing.

TECHNICAL DATA GRIZZLY M550h

Working width

up to 95 in(up to 2,410 mm)

Total width

up to 110 in(up to 2,800 mm)

Weight*

up to 5,511 lbs(up to 2,200 kg)

Rotor diameter

22 in(550 mm)

Volume flow

40-106 gpm(150-400 l/min)

Tools

56x BCS/UPTs // 64x BCS/UPTs

Hydraulic motor

2 x 107 cc // 2 x 170 cc
