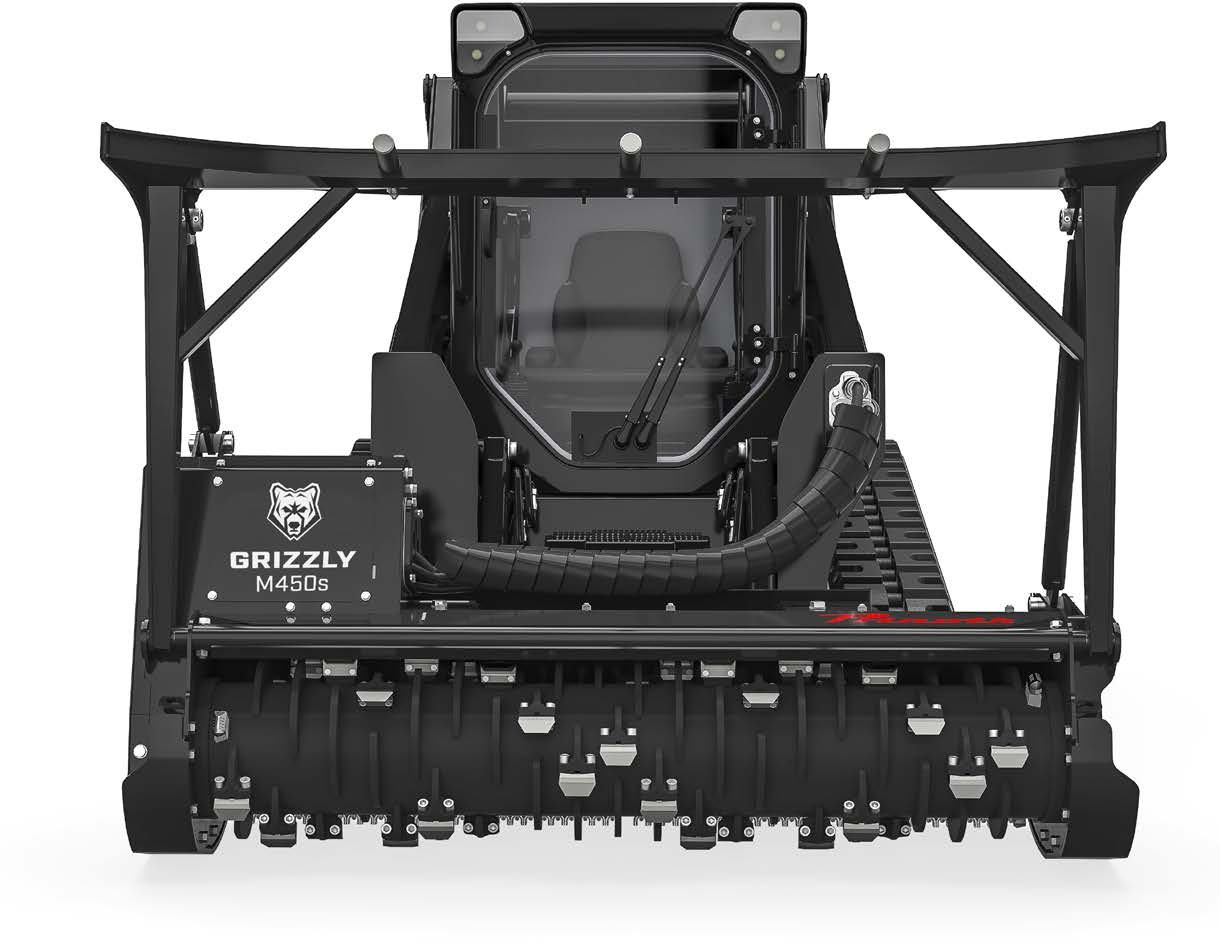

GRIZZLY M450s
Forestry Mulcher for skid steers

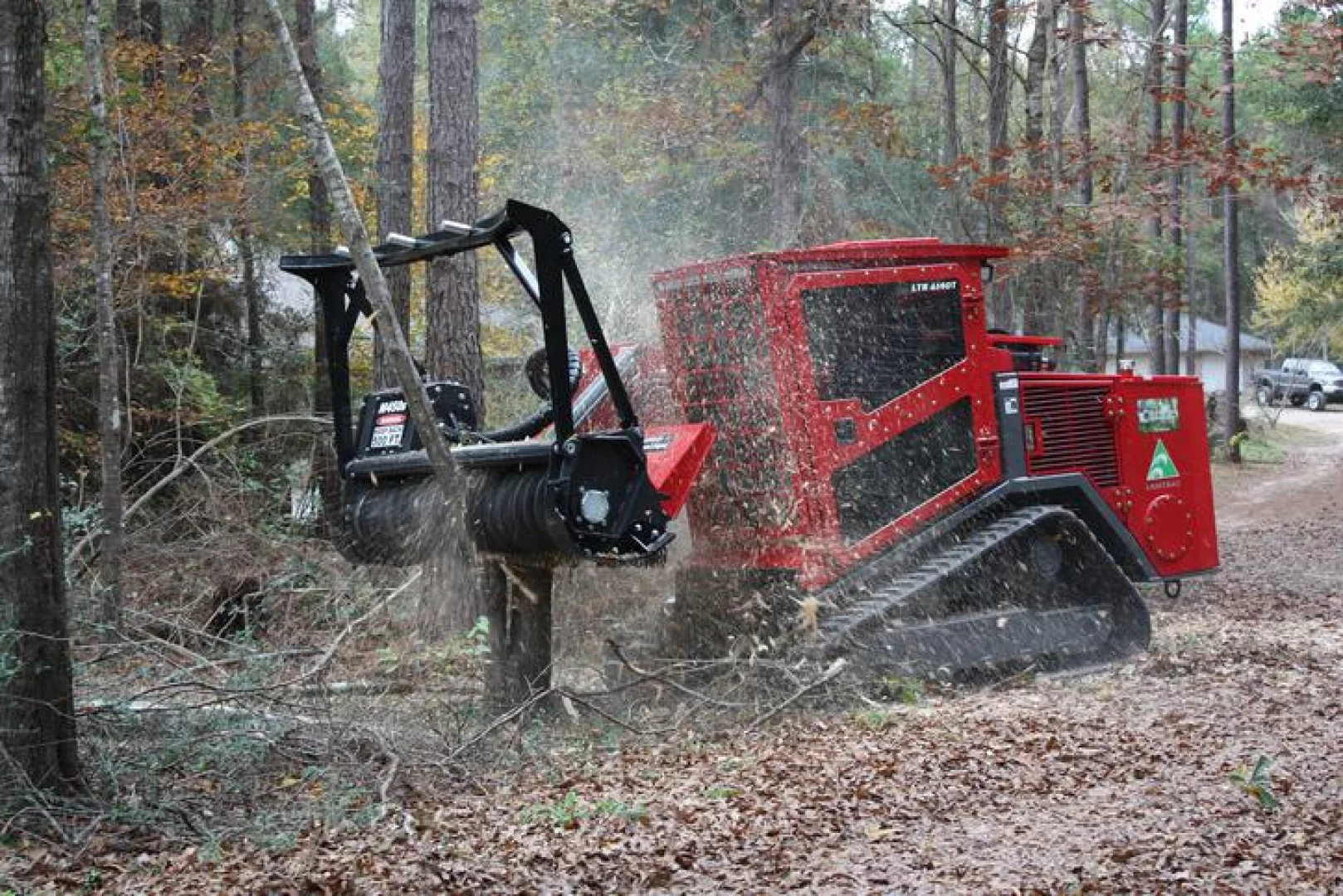

The mulcher Grizzly M450s is designed for the compact loader segment or other hydraulic-driven carriers. Developed for a range of carrier vehicles from 70 – 180 hp and with a volume flow between 22.5 – 66 gpm (85 – 250 l/min) the Grizzly M450s is a compact and powerful head for a diversity of mulching applications.
Power
70 – 180 PS
Diameter Mulching Material
30 cm
Working Width
1,600 / 1,900 / 2,200 mm
Power
70 – 180 hp
Diameter Mulching Material
12 in
Working Width
63 / 74.8 / 86.8 in
MAIN TECHNICAL BENEFITS
LIGHTWEIGHT

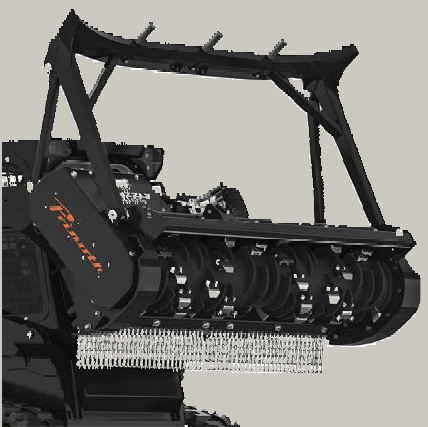

A lightweight mulching head provides more safety. The point of gravity is close to the carrier which means it provides easier handling and less tipping or roll over danger.
FAST ASSEMBLY

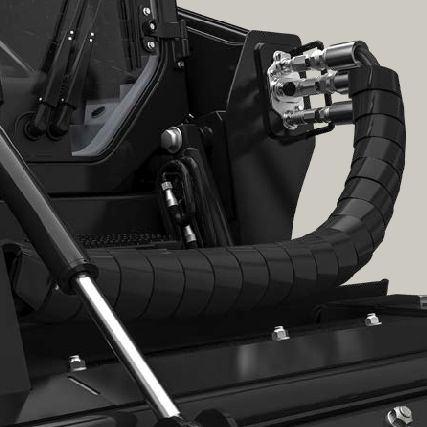

Hydraulic hoses with standard fittings are included in the package and already delivered from factory.
POWERFUL
The Grizzly M450s is equipped with a strong 107cc Rexroth HD variable axial piston motor. The strong polybelt with
2.7in (68mm) transfers the power to the rotor. The low maintenance polybelt concept saves valuable time.

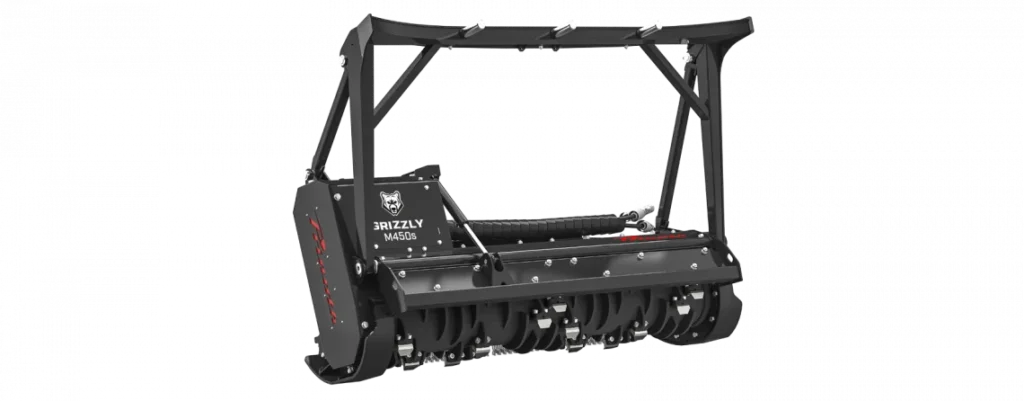

Grizzly M450s
The M450s mulcher is designed for the compact loader segment like skid steers or other hydraulic driven carrier vehicles from 70-180 hp.
Features
- Exchangeable bolted counter blades
The housing is equipped standard with bolted liners with counter blades. The liners are made out of highly wear-resistant steel and are easy exchangeable.
- BCS Bite-Control-System
BCS-Rotor with various tool options. Best balanced rotor for less wear on bearings and high speed meaning high productivity and perfect finishing.
- Various UPTs-Tools
Rotor also available with UPTs tools. Maximum reliability, built against highest impacts and loads.
- Hydraulic motor
Powerful and high efficiency 107 cc or 170 cc HD – variable displacement motor for maximum performance.
- Poly Chain Power Transfer
The low maintenance poly chain system effectively prevents slippage and saves valuable time.
- Skids

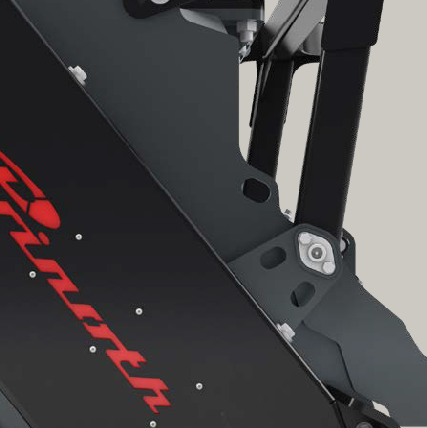

The skids are designed to allow a flexible working performance. Due to the shape, it is possible while tilting that the rotor has an improved contact to the ground material.
- Pushbar
The fixed push bar guides taller material into the rotor in a targeted and safe manner.
- Protection flap
Hydraulic flap (optional electronical controlled) with counter blades ensure better shredding of material and provides extra protection while mulching.
TECHNICAL DATA GRIZZLY M550e
Power Range
1600
70 – 150 hp
1900
80 – 150 hp
2200
100 – 180 hp
Volume Flow
51.2 in (1,300 mm)
51.2 in (1,300 mm)
66.1 in (1,680 mm)
Tools
32 x BCS / 40 x UPTs
40 x BCS / 48 x UPTs
48 x BCS
Working Width
63 in (1,600 mm)
74.8 in (1,900 mm)
86.88 in (2,200 mm)
Total Width
74.8 in (1,900 mm)
86.6 in (2,200 mm)
98.4 in (2,500 mm)
Weight*
2,513 lbs (1,140 kg)
2,668 lbs (1,210 kg)
3,042 lbs (1,380 kg)
Variable HD displacement piston motor
107 cc
107 cc
170 cc
