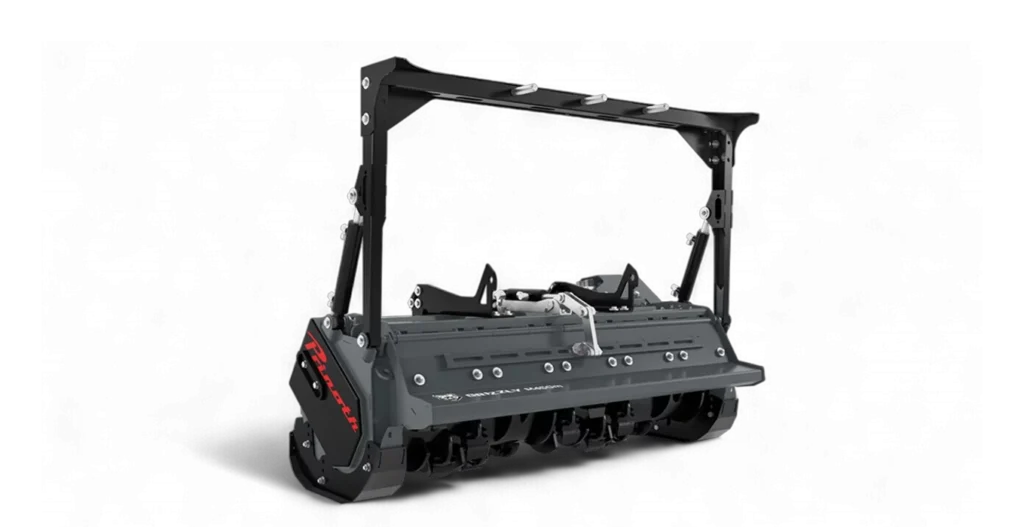

GRIZZLY M450h

Hydraulic driven brush mulcher for remote controlled and hydraulic carriers.

VM_M450h Contact US

The Grizzly M450h is a small hydraulic driven mulcher, excellent for carrier vehicles with a volume flow from 55-110 l/min (14.5 – 29 gpm). It is ideal for shredding brush, branches and trees with a maximum diameter up to 20 cm. The mulcher can be used universally: ideal for mulching brush and trees in rough or narrow terrain, very suitable for work in orchards and vineyards, excellent for forestry planting.

Volume flow
55 – 110 l/min
Rotor diameter
450 mm
Working width
up to 1,450 mm
Volume flow
14.5 – 29 gpm
Rotor diameter
17.7 in (450 mm)
Working width
up to 57 in

Your Benefits

Compact and Reliable

Excellent for the lower output

Easy handling & well suited for small carriers, available in different working widths. Transmission independent of rotation direction (front and rear mounting).

Perfect results of mulching

The BCS rotor system combined with the two exchangeable counter blades provide the best mulching results.

Efficient

Three axial piston motors to cover the volume flow range available. Power transfer with 3 flexible V-belts provides efficient overload protection.

Features

  • Push bar

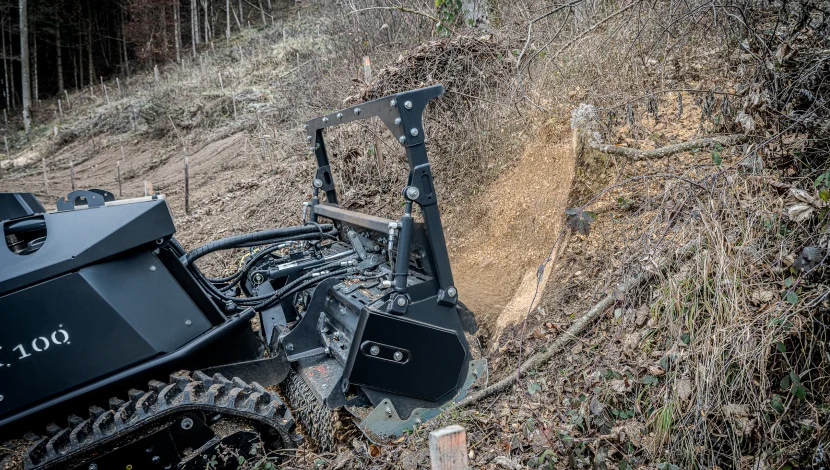

The push bar guides taller material into the rotor in a targeted and safe manner. It is available in a fixed or hydraulic version, with pins or teeth.

  • Protection flap

Hydraulic flap with counter blades ensure better shredding of material and provides extra protection while mulching.

  • Protective Chain Curtain

The chain curtain provides extra protection while mulching.

VM_M450h
Find the best deal
  • Poly chain power transfer

The low maintenance poly chain system effectively prevents slippage and saves valuable time.

  • Protected Hydraulic Hoses

Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.

  • Universal Adapter Plate (Universal Interface)

Customized interfaces for simple mounting / demounting on various carriers with different options available.

  • Hydraulic Motor

Powerful and high efficiency dual drive with 115 cc or 170 cc HD – variable displacement motors for maximum performance.

  • BCS Bite-Control-System

BCS-Rotor with various tool options. Best balanced rotor for less wear on bearings and high speed meaning high productivity and perfect finishing.

TECHNICAL DATA GRIZZLY M450h

Volume flow

14.5 – 29 gpm (55 – 110 l/min)

Rotor diameter

17.7 in (450 mm)(450 mm)

Working width

up to 57 in (up to 1,450 mm)

Total width

up to 65 in(up to 1,650 mm)

Weight

up to 1,191 lbs(up to 540 kg)

Tools

26x BCS, 30x BCS

Hydraulic motor

25 cc / 34 cc / 47 cc

piston motor with overrun valve
