GRIZZLY M450e-900
FORESTRY MULCHER FOR EXCAVATORS
The excavator mulcher Grizzly M450e-900 with a working width of 900 mm (35.4 in) is a compact forestry mulcher for excavators in the 6-12 t class with a volume flow of 16.6 – 45 gpm (63 – 170 l/min).
Working width
900 mm
Total width
1,241 mm
Weight
500 kg
Working width
35.4 in
Total width
48.8 in
Weight
1,102 lbs

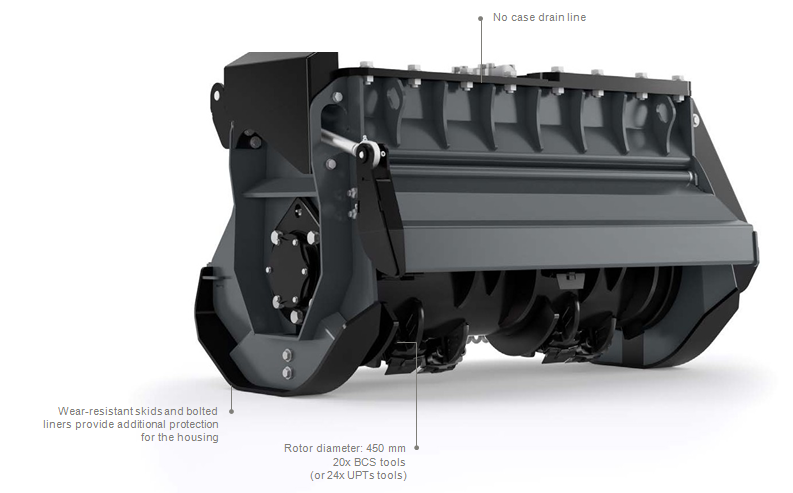

MAIN TECHNICAL BENEFITS

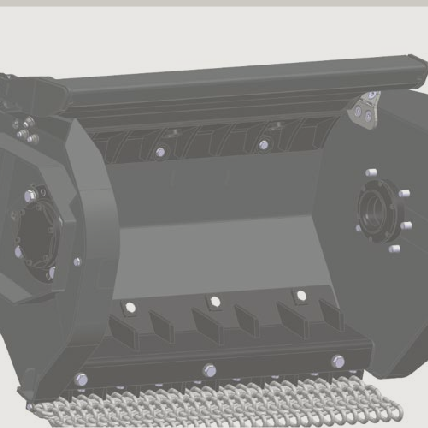

ROBUST HOUSING
Wear-resistant skids and bolted liners protect the housing and increase the lifetime.

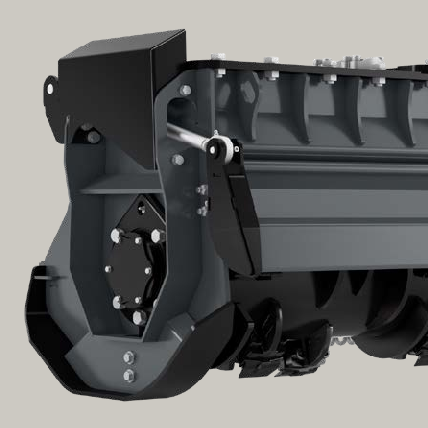

PROTECTION FLAP
The hydraulic flap provides additional protection when mulching.

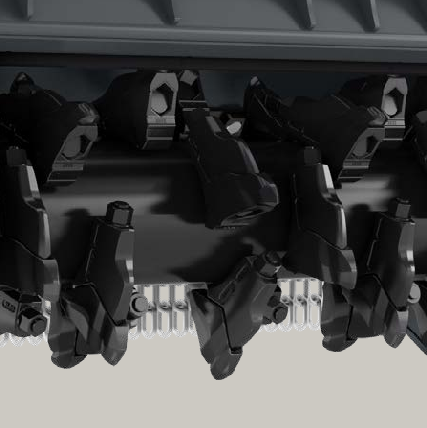

PROVEN ROTOR TECHNOLOGY
Proven rotor technology with various BCS or UPTs tools possible, for the best mulching result.
COMPACT AND POWERFUL

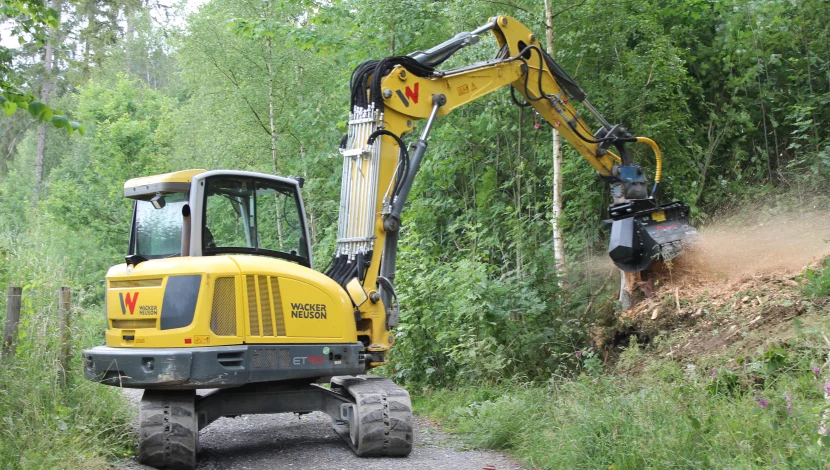

The mulcher is perfect for mulching trees and brush. Applications include forestry, maintaining roadsides, green areas and commercial and residential properties.
Features
- Protection Flap
Hydraulic flap with counter blades ensure better shredding of material and provides extra protection while mulching.
- Hydraulic motor
Powerful and high efficiency gear motors – no drain line is required on the excavator. Therefore, the machine can be easily mounted to any excavator without additional changes.
- Universal adapter plate (universal interface)
Customized interfaces for simple mounting / demounting on various carriers with different options available.
- Rotor
Rotor technology with various BCS- or UPTs-tools possible for best mulching result.
- Protective chain curtain
The chain curtain provides extra protection while mulching.
- Protected hydraulic hoses
Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.
- Exchangeable bolted counter blades
The housing is equipped standard with bolted liners with counter blades. The liners are made out of highly wear-resistant steel and are easy exchangeable.
- Protection flap
Hydraulic flap (optional electronical controlled) with counter blades ensure better shredding of material and provides extra protection while mulching.
TECHNICAL DATA M450e-900
Working width
35.4 in (900 mm)
Weight*
1,058 lbs (480 kg)
Total width
48.9 in / 1,241 mm (30, 40, 45 cc) and 50.3 in / 1,278 mm (73 cc)
Rotor diameter
17.7 in (450 mm)
Volume flow
16.6 – 45 gpm (63 – 170 l/min)
Tools
20x BCS or 24x UPTs
Heigh (with flap)
27.6 in (700 mm)
Depth (with flap)
30.3 in (770 mm)
