GRIZZLY M350e
THE NEW POWERFUL FORESTRY MULCHER FOR SMALL EXCAVATORS
The brand-new Grizzly M350e excavator head is a completely new designed forestry mulcher for 3.5 – 7 t excavators. It is equipped with a powerful 60 cc hydraulic motor or a gear motor (20, 25, 30, 40, 45 cc) to cover the flow range of small excavators and to achieve the best performance for perfect mulching results.
Working width
750 mm
Total width
1,219 mm
Weight
340 kg
Working width
29.5 in
Total width
48 in
Weight
750 lbs
HOUSING
Strong and robust housing made from Hardox for the forestry application with good access to all the service points. It is covered with counter blades which ensure additional shredding of the material while passing the housing.
PROTECTION FLAP
The optional hydraulic flap (also avail- able in electric version), provides extra protection while mulching next to roads or in residential zones.
THUMB BRACKET
The optional thumb bracket helps to move the material to be mulched.
With the installation of a counterpart, a gripper can also be added to move the mulching material.

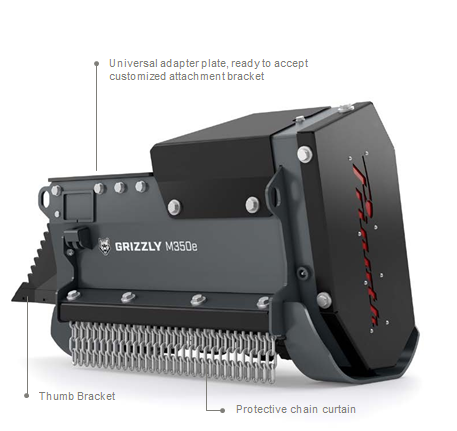

VERSATILE AND STRONG
The mulcher can be used universally: for mulching of bushes and brushwood as well as trunk wood.
Your Benefits
Robust built
Robust Housing with wear resistant skids and bolted liners made from Hardox protect the housing and increase lifetime.
Clever & Safe
The optional flap (hydraulically or electronically controlled) is equipped with exchangeable counter blades for perfect mulching results and extra protection.
Reduced maintenance
Power transfer with poly chain – the poly chain system prevents slippage and is low-maintenance.
- Powerful 60 cc HD-variable displacement motors
- Powerful gear motor options available (20, 25, 30, 40, 45 cc), no case drain line necessary
- Transfer with poly chain system prevents slippage and is low-maintenance
- Hydraulic connections are protected inside the housing
- Available with or without flap, electronically or hydraulically controlled (optional)
- Optional fixed thumb bracket available
Features
- Protection Flap
The hydraulic flap (also available in electric version), provides extra protection while mulching next to roads or in residential zones.
- Thumb Bracket
The optional thumb bracket helps to move the material to be mulched. With the installation of a counterpart, a gripper can also be added to move the mulching material.
- Protective Chain Curtain
The chain curtain provides extra protection while mulching.

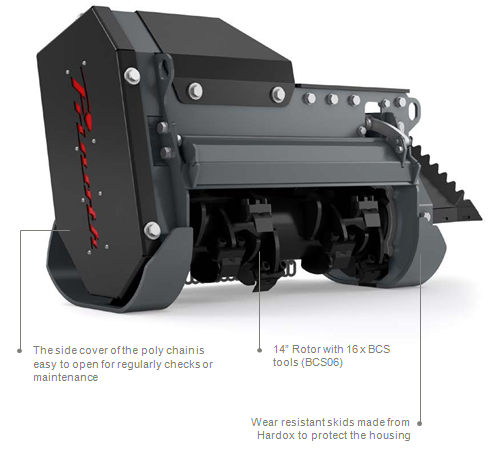

- Rotor
Rotor technology with various BCS-tools possible for best mulching result.
- Protected Hydraulic Hoses
Hydraulic hoses are integrated in the housing for more protection and reduction of downtimes.
- Universal Adapter Plate (Universal Interface)
Customized interfaces for simple mounting / demounting on various carriers with different options available.
- Hydraulic Motor
Powerful and high efficiency 60 cc gear motor.
- Housing
Strong and robust housing for the forestry application with good access to all the service points. It is covered with counter blades which ensure additional shredding of the material while passing the housing.
TECHNICAL DATA GRIZZLY M350e -750
Working width
29.5 in (750 mm)
Total width
48 in (1,218 mm)
Weight*
750 lbs (340 kg)
Rotor diameter
14 in (350 mm)
Volume flow
11.9 – 39.6 gpm (45 – 150 l/min)
Tools
16 x BCS (BCS06)
Height
28 in (715 mm)
Depth (without flap)
21.9 in (550 mm)
Depth (with flap)
22.1 in (561 mm)
